MITERSAW3045DS and MITERSAW4565DS

MITERSAW3045DS and MITERSAW4565DS

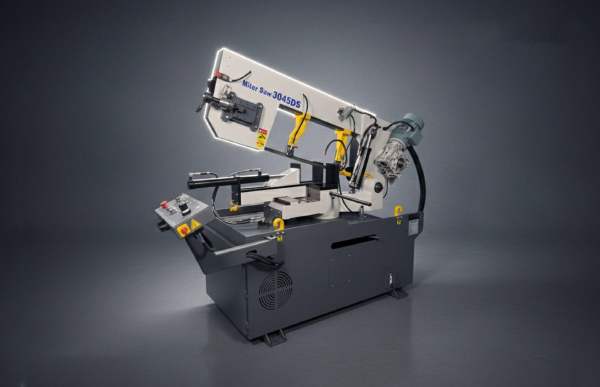

MITERSAW3045DS and MITERSAW4565DS are high-performance Swing Type Miter Cutting Semi-Automatic Band Saw Machines designed for precise straight and angular cutting in industrial applications. These machines are ideal for cutting pipes, solid bars, structural sections, and heavy metal workpieces with excellent accuracy and stability. Built with a strong and durable structure, they ensure vibration-free operation and long-term reliable performance in demanding industrial environments. Their semi-automatic working system improves productivity while reducing manual effort and maintaining consistent cutting quality. Equipped with VFD blade speed control, hydraulic vice clamping, and precision angle adjustment, they deliver smooth and efficient cutting performance. These machines are perfect for fabrication units, engineering workshops, steel industries, and manufacturing plants requiring reliable miter cutting solutions.

Category:

Reviews

There are no reviews yet.

Be the first to review “MITERSAW3045DS and MITERSAW4565DS”

Your email address will not be published. Required fields are marked *

Description

Technical Specification Table

Technical Parameters MITERSAW3045DS MITERSAW4565DS
Cutting Capacity 90° (Round) 300 mm 450 mm
Cutting Capacity 90° (Square) 250(H) x 450(W) mm 400(H) x 650(W) mm
Cutting Capacity ±45° (Round) 300 mm 450 mm
Cutting Capacity ±45° (Square) 300(H) x 300(W) mm 450(H) x 400(W) mm
Cutting Capacity -60° (Round) 225 mm 250 mm
Cutting Capacity -60° (Square) 250(H) x 225(W) mm 450(H) x 250(W) mm
Blade Size 4115 x 27 x 0.9 mm 6300 x 34 x 1.1 mm
Blade Speed 15 to 100 m/min (VFD Drive) 15 to 100 m/min (VFD Drive)
Saw Motor 3 HP (2.25 kW) 5 HP (3.75 kW)
Hydraulic Motor 1 HP (0.75 kW) 1 HP (0.75 kW)
Vice Clamping Type Hydraulic Hydraulic
Angle Swivel / Display Manual / Precision Angle Scale Manual / Precision Angle Scale
Machine Weight 910 kg (Approx.) 2050 kg (Approx.)
Dimensions (L x W x H) 2270 x 1160 x 1660 mm 3350 x 2050 x 2150 mm

Advance Features

  • Chip brush for effective chip removal from blade
  • Manual Blade Tension
  • Working Light
  • Worm Gear Box
  • Manual Adjust Blade Guide Arm
